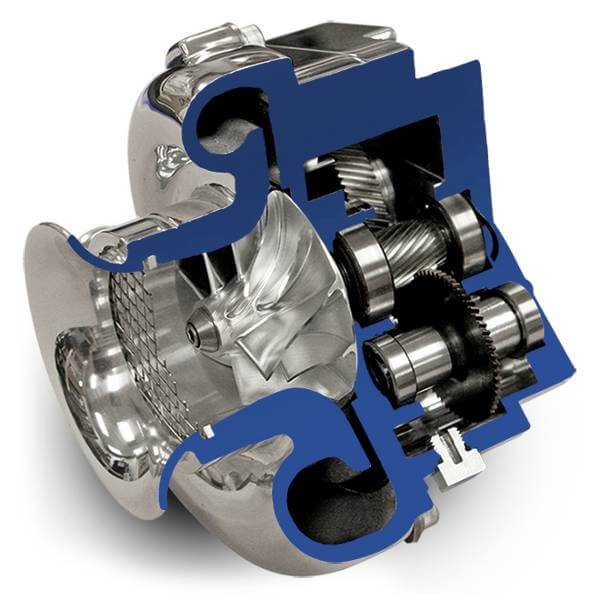

Supercharger: B-1

The ProCharger B-1 centrifugal supercharger is a step up in power from the A series but still good for street, motorcycle and powersports applications. Designed for a base engine hp of 60 to 150 the max supercharger hp is 250 on these units.

Company: ProCharger

Type: Centrifugal

Usage: Street, Motorcycle, Powersport

Availability: Available (as of Apr 19, 2017)

Drive Type: Gear

Max Peak Speed (RPM): 110,000

Max Flow (RPM): 600

Max Boost (PSI): 20

Max Power (HP): 250

Step-Up Ratio: 4.95:1

Self Contained: Yes

Inlet Outside Diamater (OD): 3"

Discharge Outside Diameter (OD): 2"

Discharge Inside Diameter (ID): 1.75"

Inducer Diameter: 2.28"

Exducer Diameter: 3.2"

Volute Diameter: 7"

Reverse Rotation: Yes

Oil Capacity: 2.5oz

Base Motor HP Range: 60 - 150
